Hollow columns halo simulation

Hollow columns halo simulation

I wish you all a very happy year 2011, may it be rich in halos and celestial wonders!

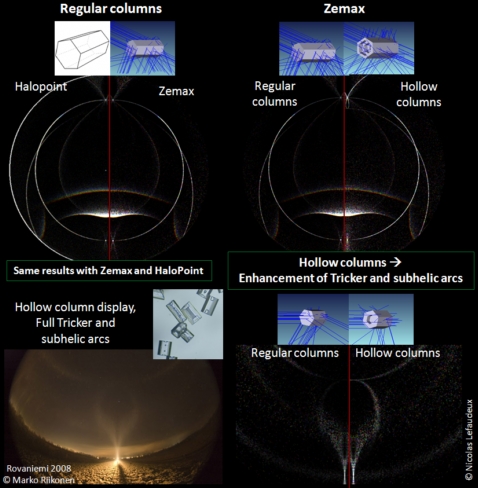

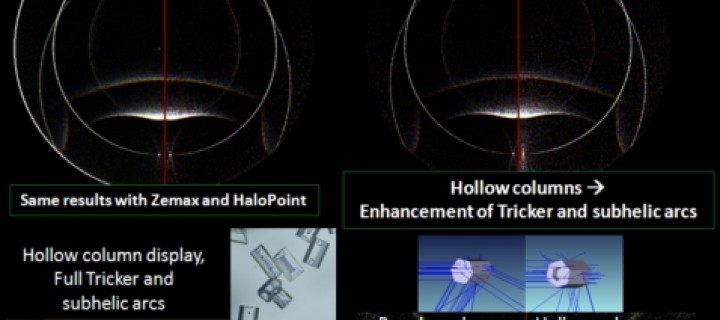

I ran some simulation of halos created by hollow columns. Usually, hollow columns are considered to be poor halo makers, reducing the probability of getting rare arcs. I have simulated hollow columns display using Zemax.

Zemax is commercial software used for optical design. Its primary purpose is design and optimization of optical systems. It allows only static simulation, but I wrote a few macros to simulate halos. The main advantages are that you don’t need to compute yourself all the optics laws, just to concentrate on the halos, and it is very flexible software. I have been able to simulate displays from twinned and complex crystals. Its main disadvantage is that it is very slow compared to dedicated software like Halopoint. I have compared the two software and they give the same halos, so the optics inside is really the same. Crystals used to simulate hollow columns keep their crystalline faces for the hollow parts. In real crystals, the holes appear to be more rounded and smooth. The halos simulated are so from ideal hollow columns. Simulation shows that, quite unexpectedly, hollow columns strongly enhance complex arcs in the anthelic direction. For instance, Tricker and subhelic arcs are much more prominent than with regular columns. Marko Riikonen pointed out a display with samples showing lots of hollow columns that had strong Tricker and subhelic arc. Simulations with hollow columns are quite consistent with the display.

I still don’t really figure how these complex raypaths can have increased probability with hollow columns, but simulations definitely show it.

Nicolas Lefaudeux


  • Interesting indeed. I guess the effective aspect ratio of the prism is decreased (the prism is shortened) by these additional inside-protruding surfaces, thus increasing Tricker raypath occuring percentage.

    btw.: Nice to see haloPoint producing similar results with another software.

  • Actually I think there is some other mechanism involved than just shortening of the column because even with short columns you get strong but not complete Tricker and subhelic arcs.

    I don’t really know how this is happening. It could be a combination of external and internal reflections, or maybe rays somehow traveling inside the thin crown at the edge of crystal.

  • Nice job Nicolas! We have always been lacking possibility to apply these inner structures for simulations.

    Have you tried other possible halo makers like capped columns? Also you should try to make ellipsical halo simulations with that program. There is some unsolved questions about elliptical halos.

  • Wow interesting here I habe always thought columns with those cavities on the ends would block tricker arc rays rather than enhance them.

  • Ok, now I am not sure if the hollowed column better reproduces my display concerning the Tricker arc intensity, but what I am more excited about this is the disappearance of “sun cross” in the hollowed crystal simulation. And in general to finally have the first simulations with “inperfect” crystal.

    The path with the traditional convex solid single crystals has been traversed through long ago. At first we had only the regular heagons to work with. Then came the possibility to change the crystal face ratios, which provided moments of elightement for a while. But now even that path is pretty much beaten. So the next step is start incorporating truly natural looking crystals in the simulations with their cavities, air bubbles, ridges and depressions. There are already algorithsm that simulate these kind of crystals, perhaps they could be incorporated in the halo simulation programs one day. And of course also the clustered crystals are a new interesting path to follow.

    Yeah, it is great work from Lefadeux (as always). I can think of several cases where we could try these “imperfect” crystals.

  • Thanks! complex crystals are great but however it adds lots of degrees of freedom and so tuning a simulation to match a display is very hard as simulation also take very long (for instance several hours for the complex hollow column on top right, and about one hour for simpler hollow column on lower right)

    incorporating bubbles and cavities is very easy using zemax. I have several ideas and simulations in progress, I will share them here when they are more ready to be shown. I’ll also add the capped columns on my “to do” list, others are already on it!

  • Hello Nicolas, very impressive work! Did you use the same shape for all the hollow columns or some varying inner structure throughout the crystal set? Could you show the region close to sun in more detail? Recently, we have a discussion in the german message board about what we can see there.

  • Hi Alexander,
    I used the same shape crystal for each simulation. The crystal drawn on top is the one used for each simulation. I will try to do a close up simulation of the sun region this week end. I had a look to the german forum, and I don’t think it there is anything of elliptical halo in the sun region. I think it is just artefacts caused by the left/right symmetry in the simulation and the jpg compression.
    But a close up simulation will show what is really going on for sure

  • These crystals were replicated with Riikonen in 8-9 December 2010. I just photographed some of the crystals as I got my microscope setup running again.

    The cavities, pores and other structures will indeed prove a fascinating world to explore!
